CNC Machining Services

Trusted Materials. Quote in 24 Hours. Parts as Fast as 7 Days.

Our founder has 15+ years experience in precision machining industry. CNC milling, CNC turning all in high quality materials. A wide range of surface finishes to choose from.

blue-divider-line

What is CNC Machining Services

Computer numerical control machining, referred to as CNC machining, is a subtractive manufacturing process. It utilizes computerized controls to operate and manipulate machine and cutting tools to produce custom precision machined parts, by removing layers of material from the workpiece.

CNC machining service is a manufacturing process in which pre-programmed computer software dictates the movement of factory tools and machinery. The process can be used to control a range of complex machinery, from grinders and lathes to mills and routers. With CNC machining, three-dimensional cutting tasks can be accomplished in a single set of prompts.

Precision Manufacturing
blue-divider-line

The Process of CNC Machining

You may think the CNC Machining process can be complex, the CNC Machining process is quite simple here at DH Machining, our process involves the following steps:

Design: Use CAD to create 2D or 3D models of the parts you need making.

Programming: Use the CAM software to convert the CAD into G-Code, which is the language used to program these machines.

Set up: Set up the machine with the correct tools and material.

Machine: When everything is set up, we can machine the part.

Inspect: IQC, IPQC, FQC, make sure the work piece had been machined according to design.

blue-divider-line

Advantages of CNC Machining Services in DH

  • Highly Accurate – CNC machining can create parts with greater dimensional accuracy than most other common manufacturing technologies. During the final finishing machining steps, material can be removed from the workpiece very accurately, achieving very tight tolerances. Here at DH Machining, we offer a standard tolerance of any dimension in CNC machining is ± 0.1 mm. Features with tighter tolerance down to ± 0.010 mm can be produced and even tolerances of ± 0.005 mm are feasible.
  • Cost effective – The labor cost here in Dongguan China is nearly 1/3 of that in developed countries. More over, by keeping a midsize company scale, our operation cost is lower than other CNC machine shops. Our precision CNC Machining services are extremely accurate, so the waste material is kept to a minimum. CNC machining is a very competitive option for manufacturing small-to-medium volumes (from 10's to 100's). In fact, when ordering 10 identical parts, the unit price is cut by about 70% compared to a one-off part. This is because 'economies of scale' start to kick in: the relatively high start-up costs of CNC are spread over multiple parts. Even on-demand production of one-off parts and prototypes is economically. This is especially relevant for one-off custom metal parts and prototypes, where CNC is the most cost-competitive solution.
  • Very Efficient – CNC Machines feature an internal quality assurance detector, which makes the machines very efficient. Here at DH Machining, we don't have a very complicated company structure like big manufacturer. This means we can act quickly to meet your individual requirement. The advances of modern CNC systems, CAM software have greatly accelerated the production times. Now CNC machined parts are typically ready for delivery within 7 days.
    • blue-divider-line

    Finishes for CNC Machining

    Here in south China, almost every precision manufacturing company subcontracts their surface finishing because of the strict environment policy. At DH Machining we have first class subcontractors with a wide range of finishes to choose from.

    Rapid Machining

    Aluminum parts

  • Various color anodized
  • Hard anodized
  • Electro nickel plating
  • Chemical nickel plating
  • Alodine
    • CNC Machining Parts

    Stainless Steel parts

  • Milling polishing
  • Passivation
  • Electro polishing
  • Oxidizing
  • Chroming
    • Machining Parts

    Steel Parts

  • Plating
  • Oxidizing
  • Passivation
  • Heat treatment
    • Custom Machining

    Plastic Parts

  • Painting
  • Chrome plating
  • Polishing
  • Sandblast
    • blue-divider-line

    Materials for CNC Machining

    We fully understand your concern about the quality of raw material. When you are working with a machining supplier, the first thing you need to consider is the quality of the material. We have a proven record supplying good materials to market, especially in Medical Devices, Industrial Automation, Robotics.

    Here at DH, we only use high quality materials in production.
    MaterialCommon Type
    AluminiumAL6061, AL6063, AL6082, AL7075, AL5052 etc.
    Stainless steelSS303, SS304, SS316, SS416, 17-4PH etc.
    Mild steelFe360A, C45E4
    Alloy steel42CrMo4
    Tool steelD2, A2
    BrassHPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
    CopperC11000, C12000, C12000, C26000, C51000 etc.
    TitaniumGrade 1, 2, 3, 5
    PlasticABS, PC, PE, POM, Delrin, Nylon, Teflon, PP, PEI, Peek, Carbon Fiber
    blue-divider-line

    Tolerence for CNC Machining

    With a drawing, DH Machining can produce parts with tolerance as low as 0.003mm. Without a drawing, all parts are produced to our ISO 2768 medium standard.

    Here at DH Machining, our engineer will review your drawings and suggest the possible tolerance according to machinability.
    EquipmentMachining Range (X*Y*Z) mmPrecision (mm)
    CNC machining1000*600*6000.005
    CNC latheØ300*7500.005
    Manual latheØ300*7500.01
    Manual Milling800*400*5000.02
    Water grinding400*800*4500.005
    Wire cutting500*400*1500.02
    blue-divider-line

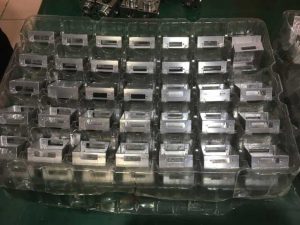

    Our Packages for Precision Machined Parts

    blue-divider-line

    Our Quality Promise

    DH Quality Promise

    • All materials in high quality
    • Inspection reports included with every order.
    • Critical dimensions inspected by trained Quality Engineers
    • 100% satisfied, will reproduce parts if there is any quality complaint
    Get a Quote
